CHASSIS
The complete generator set is mounted as a whole on a heavy duty fabricated, steel base frame
Steel chassis and anti-vibration pads
Base frame design incorporates an integral fuel tank
The generator can be lifted or carefully pushed/pulled by the base frame
Dial type fuel gauge on the fuel tank

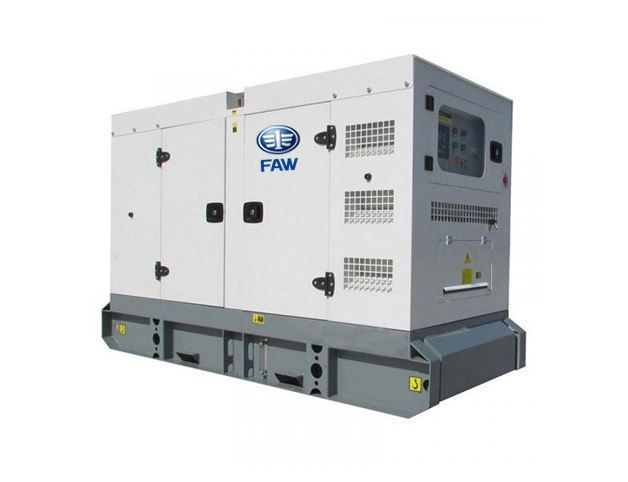

CANOPY
Ventilation parts are designed with modular principles
Weather resistant and lined with sound reducing foam
All metal canopy parts are painted by powder paint
Panel window
Lockable doors on each side
Easy maintenance and operation
Easy lifting and moving
Thermally insulated engine exhaust system
Exterior emergency stop push button
Sound attenuated

CONTROL SYSTEM
Control supervision and protection panel is mounted on the genset base frame. The control panel is equipped as follows:
Auto mains failure control panel
Controller with Smartgen automatic transfer switch
420 Smartgen electronic controller
Emergency stop push button
Static battery charger
Three-pole electrically and mechanically interlocked ATS

Generating set control module 420 Smartgen features
This module is used to monitor a mains supply and automatically start a standby generating set
Shutdown alarms
STOP/RESET-MANUAL-AUTO-TEST-START

Metering via LCD display
Mains volts (L-L/L-N)
Generator amps (L1, L2, L3)
Generator frequency; generator (cos)
Engine hours run; plant battery (volts)
Engine oil pressure (psi and bar)
Engine speed (rpm)
Engine temperature (degrees C)

Automatic shutdown and fault conditions
Under/over speed; fail to start
High engine temperature; fail to stop
Low oil pressure; charge fail
Under/over generator volts
Under/over generator frequency;
Emergency stop/start failure
Under/over mains voltage
Charge failure
